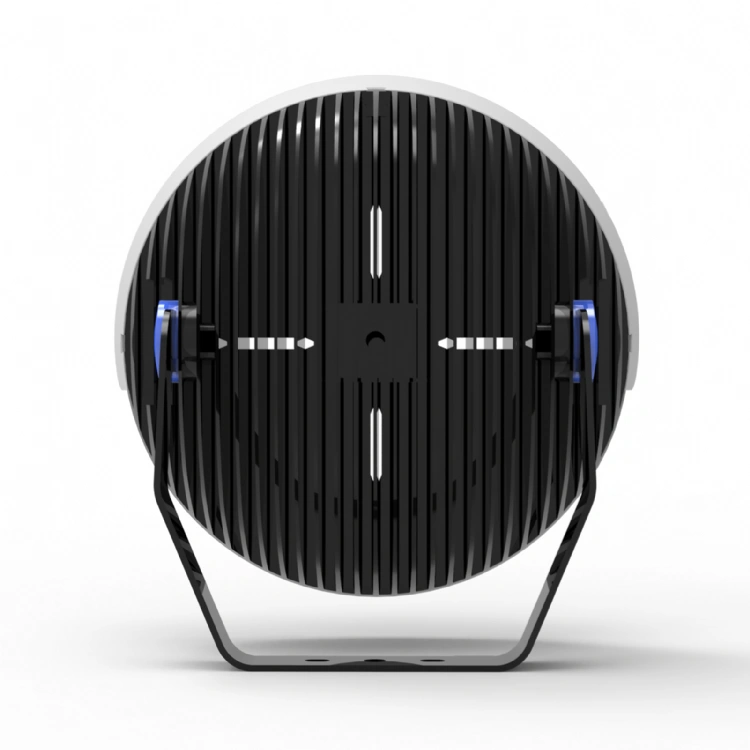

G5 LED High Mast Lighting
FEATURES
- · Very low windage area (EPA)
- · Only 21.9 inches (556mm) in diameter can easily replace HID / MH / HPS fixtures on existing poles, wiring and mounting arms
- · One PCB board design, better glare control with our quality Lens
- · Light weight design ensures less force on poles
- · Unique hollow design for excellent heat dissipation
Driver: Meanwell / Inventronics LED drivers designed for ultra-high efficiency, high input voltage, thermal protection for LED module, output lumen compensation, and high surge protection.
LEDs: Nichia / Osram LED chips with superior stability for long life span 100,000 hours, high density LM80.
Housing: Low copper die casting aluminum housing ensures excellent heat dissipation. Powder coated inside and out protects the housing from all types of weather.
Optics: High quality PC lens, UV resistance.
Mounting: Fixtures comes standard with U-Bracket. Pipe slip fitter and yolk mounts are available upon request and will require MOQ. Custom mounting options can be made according to customer’s specifications, MOQ will apply.
Weatherproof: Standard with IP 65, IP 66 can be customerized.
Replacement:
1400W LED = 2000W HID / MH / HPS
1600W LED = 2000W HID / MH / HPS
Surge Protection: Built-in 10kV surge protection module is used to prevent fixture damage in the event of an excessive voltage surge, i.e. lightning or transformer malfunction. Optional 20kV surge protection module available upon request.
Warranty: Standard with 5 years warranty, 7 / 10 years warranty optional .
